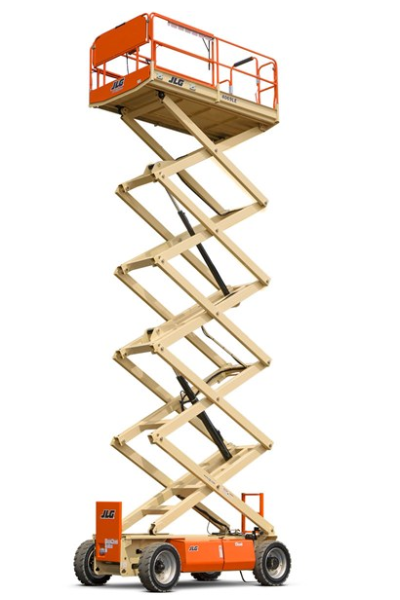

JLG M4069LE Specs
Slab Scissor Lift Specifications
| Engine | Power Option |
Bi-Energy |
| Platform | Max Platform Height |
40' 0" |
| Max Weight Capacity |
800 lb |
|
| Platform Length |
9' 7" |
|
| Platform Dimensions |
5' 5" |
|
| Dimensions | Overall Width |
5' 9" |
| Turning Radius |
15' 6" |
|
| Wheelbase |
7' 7" |
|
| Ground Clearance |
8" |
|
| Overall Length |
10' 2" |
|
| Overall Height Stowed |
9' 3" |
|
| Operational | Operating Weight |
10,860 lb |
| Maximum Speed |
3 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
