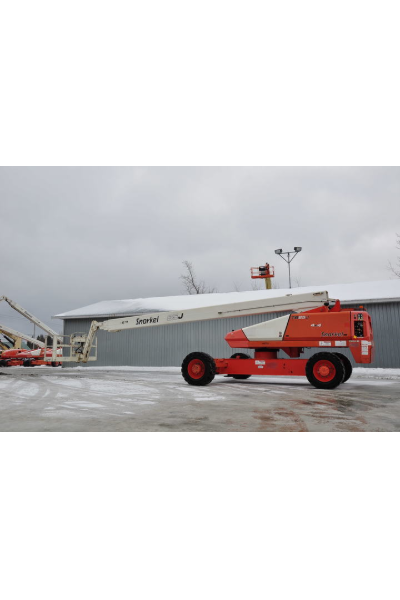

Snorkel TB85J Specs
Telescopic Boom Lift Specifications
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
84 ft 11 in |
| Max Horizontal Reach |
76 ft 9 in |
|
| Max Weight Capacity |
500 lbs |
|
| Platform Dimensions |
8' x 3' |
|
| Platform Rotation |
150 degree |
|
| Dimensions | Overall Width |
102 in |
| Overall Length |
42 ft 3 in |
|
| Turning Radius |
15 ft 5 in |
|
| Overall Height Stowed |
9 ft 6 in |
|
| Ground Clearance |
13 in |
|
| Operational | Operating Weight |
37,699 lbs |
| Maximum Speed |
2.90 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
