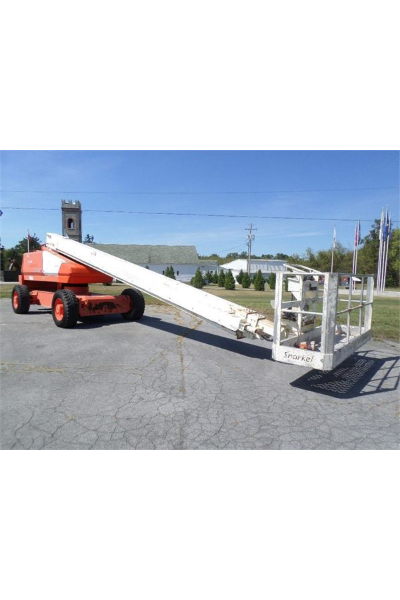

Snorkel TB80 Specs

Telescopic Boom Lift Specifications

Engine Power Option Diesel
Platform Max Horizontal Reach 71 ft 2 in
Max Weight Capacity 500 lbs
Platform Dimensions 8' x 3'
Platform Rotation 150 degree
Dimensions Overall Width 102 in
Overall Height Stowed 9 ft 6 in
Ground Clearance 13 in
Overall Length 38 ft 8 in
Turning Radius 15 ft 5 in
Operational Operating Weight 36,332 lbs
Maximum Speed 2.90 mph

Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
