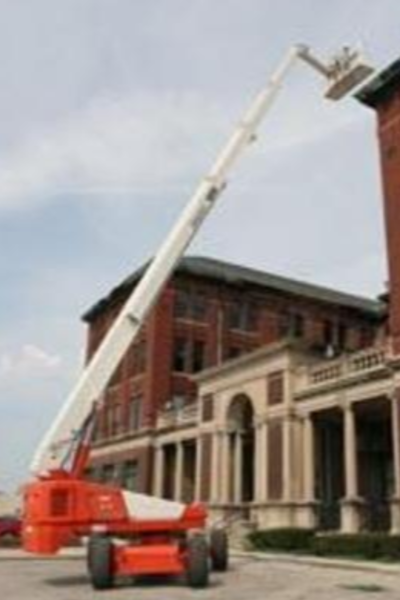

Snorkel TB126J Specs

Telescopic Boom Lift Specifications

Engine Power Option Diesel
Platform Max Platform Height 126 ft
Max Horizontal Reach 62 ft 11 in
Max Weight Capacity 500 lbs
Platform Dimensions 8' x 2'5"
Platform Rotation 180 degree
Dimensions Overall Width 153 in
Turning Radius 33 ft
Ground Clearance 13 in
Overall Length 44 ft 9 in
Overall Height Stowed 10 ft 5 in
Operational Operating Weight 42,150 lbs
Maximum Speed 2.90 mph

Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
