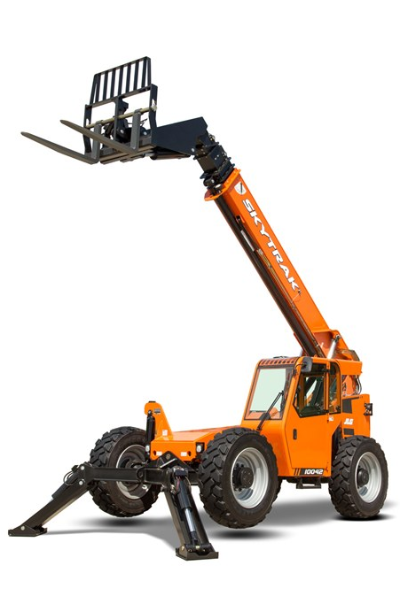

SkyTrak 10042 Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Operational | Max Lifting Capacity |
10,000 lb |
| Max Lifting Height |
42' 1" |
|
| Operating Weight |
27,300 lb |
|
| Draw Bar Pull |
24,000 lb |
|
| Lift Capacity at Maximum Reach |
2,000 lb |
|
| Maximum Speed |
20 mph |
|
| Maximum Forward Reach |
26' 7" |
|
| Lift Capacity at Maximum Height |
6,000 lb |
|
| Dimensions | Overall Width |
8' 6" |
| Turning Radius |
14' 2" |
|
| Wheelbase |
10" |
|
| Overall Length Stowed |
20' 8" |
|
| Ground Clearance |
18" |
|
| Overall Length |
20' 8" |
|
| Overall Height Stowed |
8' 4" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
