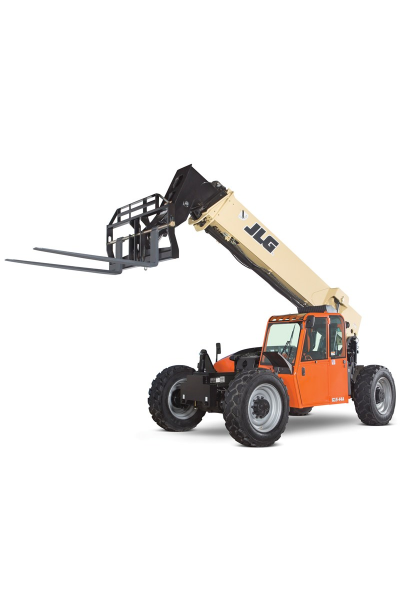

JLG G15 44A Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Operational | Max Lifting Capacity |
15,000 lb |
| Max Lifting Height |
44' 0" |
|
| Operating Weight |
32,500 lb |
|
| Lift Capacity at Maximum Height |
7,000 lb |
|
| Draw Bar Pull |
24,000 lb |
|
| Lift Capacity at Maximum Reach |
2,000 lb |
|
| Maximum Speed |
20 mph |
|
| Maximum Forward Reach |
31' 0" |
|
| Dimensions | Overall Width |
8' 5" |
| Turning Radius |
14' 6" |
|
| Wheelbase |
12' 0" |
|
| Ground Clearance |
18" |
|
| Overall Length |
20' 0" |
|
| Overall Height Stowed |
8' 5" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
