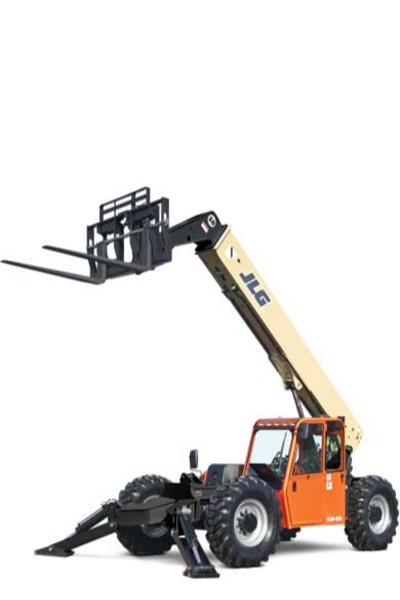

JLG G10 43A Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Operational | Max Lifting Capacity |
10,000 lbs |
| Max Lifting Height |
43 ft |
|
| Operating Weight |
27,380 lbs |
|
| Lift Capacity at Maximum Height |
7,000 lbs |
|
| Maximum Forward Reach |
30 ft 7 in |
|
| Maximum Speed |
20 mph |
|
| Lift Capacity at Maximum Reach |
2,700 lbs |
|
| Draw Bar Pull |
22,000 lbs |
|
| Dimensions | Overall Width |
95 in |
| Turning Radius |
12 ft |
|
| Overall Height Stowed |
8 ft |
|
| Overall Length |
19 ft 10 in |
|
| Ground Clearance |
1 ft 5 in |
|
| Overall Length Stowed |
19 ft 10 in |
|
| Wheelbase |
11 ft |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
