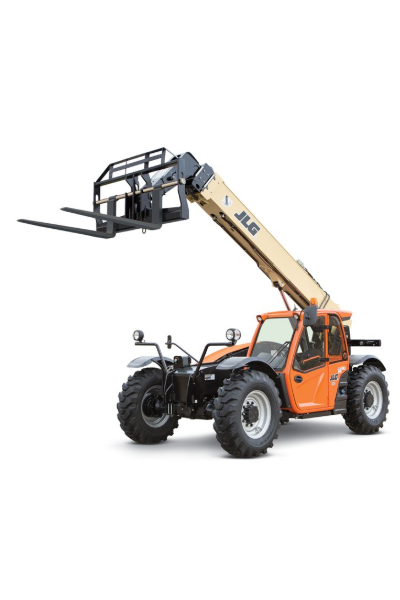

JLG 642 Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Operational | Max Lifting Capacity |
6,600 lb |
| Max Lifting Height |
42' 0" |
|
| Operating Weight |
22,218 lb |
|
| Lift Capacity at Maximum Reach |
1,000 lb |
|
| Maximum Speed |
21 mph |
|
| Maximum Forward Reach |
29' 0" |
|
| Lift Capacity at Maximum Height |
6,600 lb |
|
| Draw Bar Pull |
20,255 lb |
|
| Maximum Speed Field to Remain |
21 mph |
|
| Dimensions | Overall Width |
8' 1" |
| Turning Radius |
12' 0" |
|
| Overall Length Stowed |
18' 11" |
|
| Ground Clearance |
17" |
|
| Overall Length |
18' 11" |
|
| Overall Height Stowed |
8' 0" |
|
| Wheelbase |
11' 3" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
