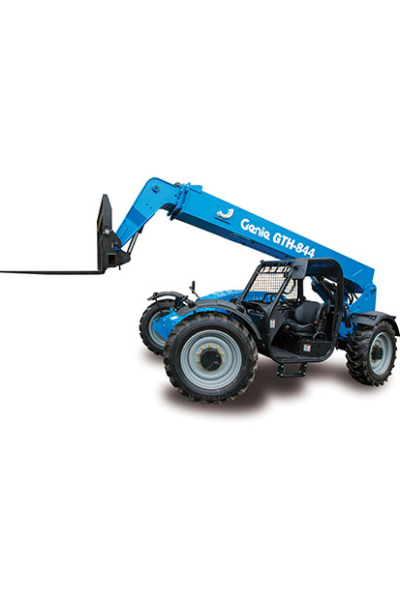

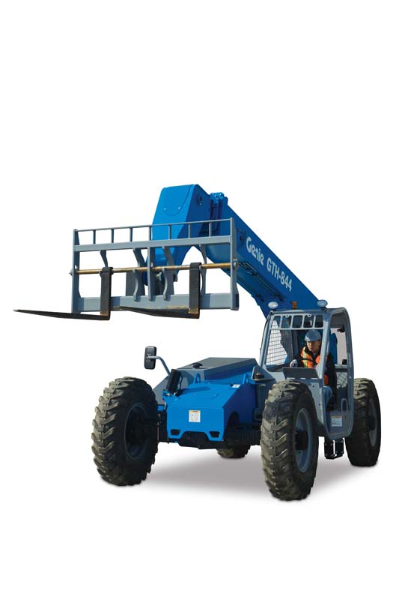

Genie GTH 844 Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Drive |
4WS |
|
| Operational | Max Lifting Capacity |
8,000 lbs |
| Max Lifting Height |
43' 10" |
|
| Operating Weight |
22,600 lbs |
|
| Lift Capacity at Maximum Height |
6,000 lbs |
|
| Maximum Forward Reach |
28' 2" |
|
| Maximum Speed |
15 mph |
|
| Lift Capacity at Maximum Reach |
2,000 lbs |
|
| Draw Bar Pull |
21,000 lbs |
|
| Dimensions | Overall Width |
8' 1.50" |
| Turning Radius |
13' 9" |
|
| Ground Clearance |
1' 3" |
|
| Overall Length Stowed |
20' 3" |
|
| Wheelbase |
11' 4" |
|
| Overall Height Stowed |
7' 10" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
