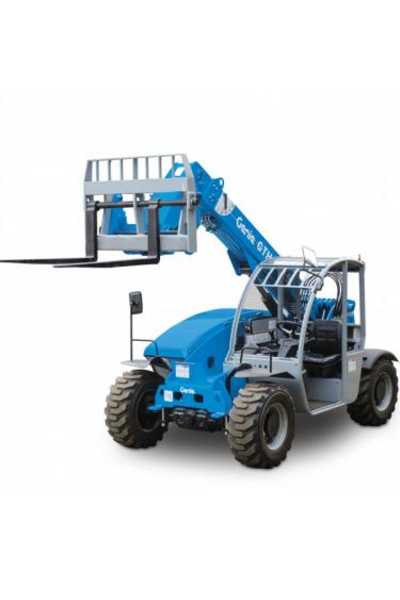

Genie GTH 5519 Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Drive |
4WS |
|
| Operational | Max Lifting Capacity |
5,500 lb |
| Max Lifting Height |
18' 10" |
|
| Operating Weight |
10,360 lb |
|
| Maximum Speed |
15 mph |
|
| Maximum Forward Reach |
11' 3" |
|
| Lift Capacity at Maximum Height |
4,400 lb |
|
| Draw Bar Pull |
10,250 lb |
|
| Lift Capacity at Maximum Reach |
1,900 lb |
|
| Dimensions | Overall Width |
5' 11" |
| Turning Radius |
11' 0" |
|
| Wheelbase |
7' 6" |
|
| Overall Length Stowed |
12' 3" |
|
| Ground Clearance |
10" |
|
| Overall Height Stowed |
6' 6" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
