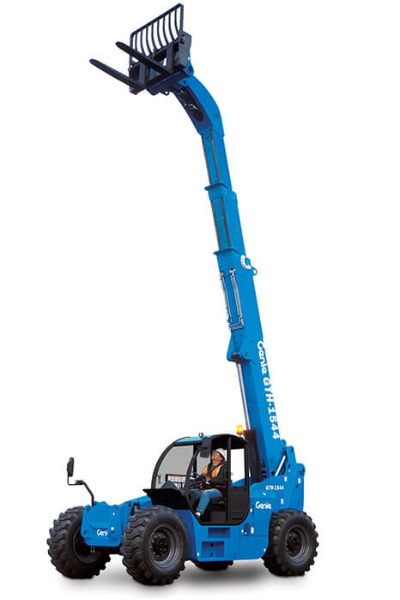

Genie GTH 1544 Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Drive |
4WS |
|
| Operational | Max Lifting Capacity |
15,000 lb |
| Max Lifting Height |
44' 0" |
|
| Operating Weight |
33,686 lb |
|
| Maximum Speed |
18 mph |
|
| Maximum Forward Reach |
27' 3" |
|
| Lift Capacity at Maximum Height |
10,000 lb |
|
| Draw Bar Pull |
22,500 lb |
|
| Lift Capacity at Maximum Reach |
3,500 lb |
|
| Dimensions | Overall Width |
7' 11" |
| Turning Radius |
14' 7" |
|
| Wheelbase |
11' 6" |
|
| Overall Length Stowed |
20' 4" |
|
| Ground Clearance |
15" |
|
| Overall Length |
20' 4" |
|
| Overall Height Stowed |
8' 7" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
