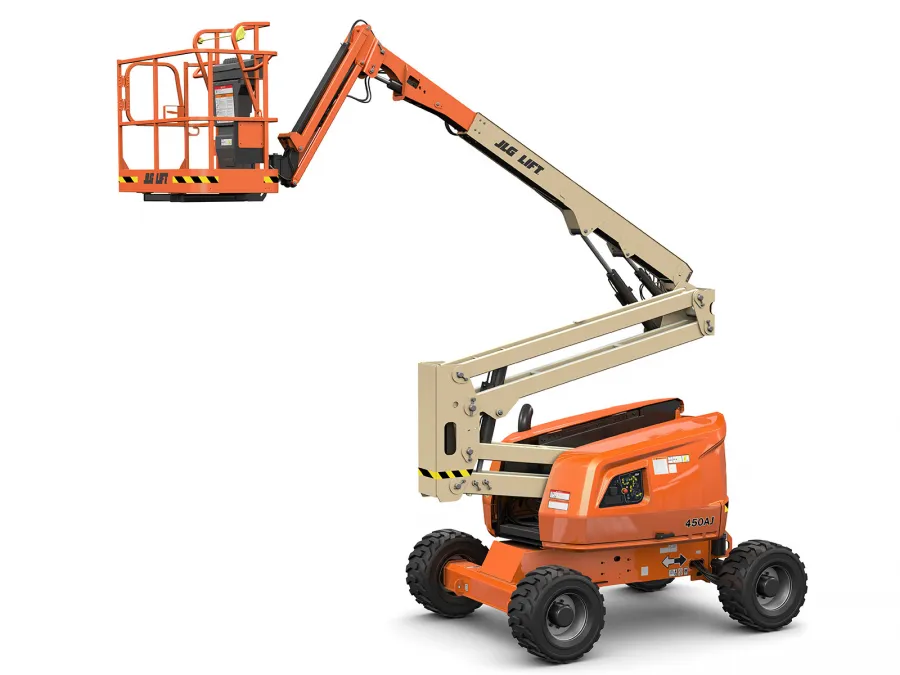

JLG 450AJ Specs ANSI updated

Articulating Boom Lift Specifications

Contact manufacturer to confirm your lift includes ANSI updates.

For specs prior to ANSI updates click here

Engine Power Option Dual Fuel or Diesel
Platform Max Horizontal Reach 25 ft
Max Weight Capacity 550 lbs
Max Platform Height 45 ft
Platform Dimensions 6' x 2'6"
Dimensions Overall Width 93 in
Overall Height Stowed 7 ft 5 in
Ground Clearance 1 ft
Overall Length 21 ft 7 in
Turning Radius 15 ft 8 in
Operational Operating Weight 14,150 lbs
Maximum Speed 4.30 mph

Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
