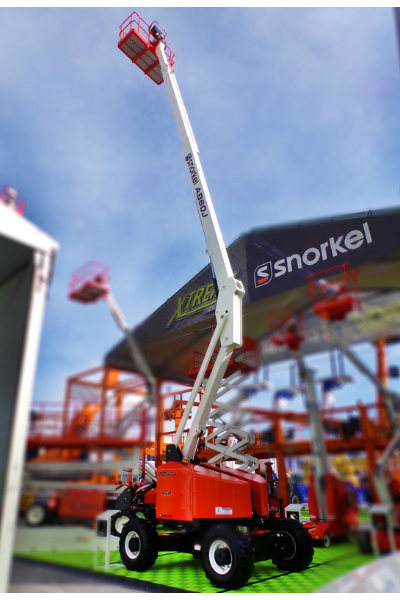

Snorkel AB60J Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
60 ft |
| Max Horizontal Reach |
43 ft 1 in |
|
| Max Weight Capacity |
500 lbs |
|
| Platform Rotation |
180 degree |
|
| Platform Dimensions |
8' x 3' |
|
| Dimensions | Overall Width |
95 in |
| Turning Radius |
20 ft 3 in |
|
| Overall Height Stowed |
8 ft 3 in |
|
| Ground Clearance |
12 in |
|
| Overall Length |
29 ft 2 in |
|
| Operational | Operating Weight |
24,800 lbs |
| Maximum Speed |
3.20 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
