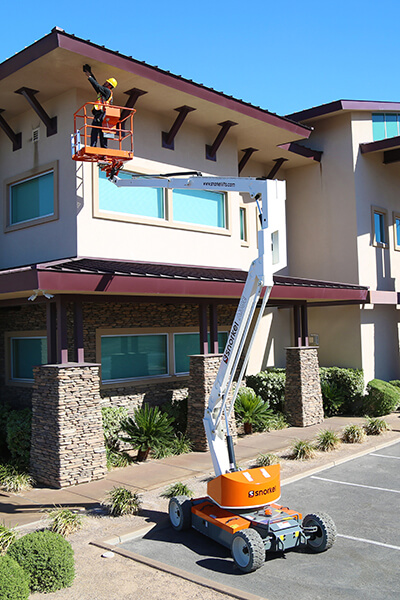

Snorkel A38E Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Electric |
| Platform | Max Platform Height |
37 ft 7 in |
| Max Horizontal Reach |
18 ft 4 in |
|
| Max Weight Capacity |
475 lbs |
|
| Platform Dimensions |
4'3.9" x 3'3" |
|
| Dimensions | Overall Width |
59 in |
| Turning Radius |
7 ft 10 in |
|
| Overall Height Stowed |
6 ft 8 in |
|
| Ground Clearance |
4.70 in |
|
| Overall Length |
13 ft 4.8 in |
|
| Operational | Operating Weight |
9,140 lbs |
| Maximum Speed |
2.50 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
