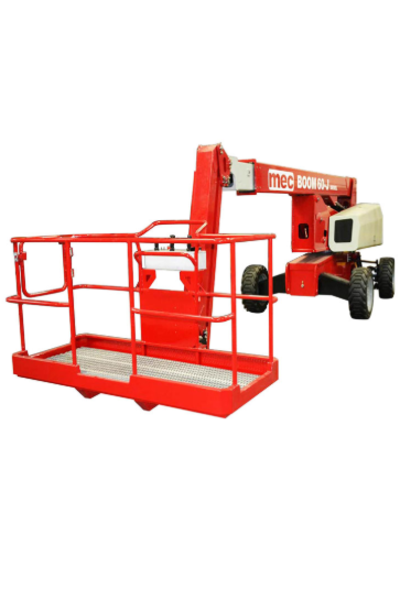

MEC 60J Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Electric Diesel |
| Platform | Max Platform Height |
60' 0" |
| Max Horizontal Reach |
42' 8" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Length |
3' 4" |
|
| Platform Rotation |
180 deg |
|
| Dimensions | Overall Width |
8' 0" |
| Ground Clearance |
12" |
|
| Overall Height Stowed |
8' 4" |
|
| Overall Length |
30' 6" |
|
| Operational | Operating Weight |
17,900 lb 18,500 lb |
| Maximum Speed |
4 mph 3 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
