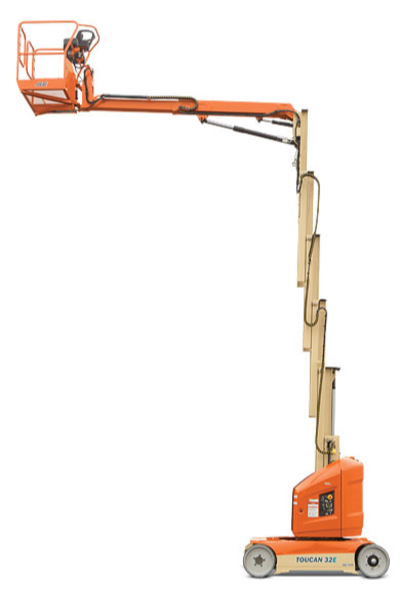

JLG T32E Specs
Vertical Mast Lift Specifications
| Engine | Power Option |
Electric |
| Platform | Max Platform Height |
32' 3" |
| Max Horizontal Reach |
15' 1" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Length |
2' 4" |
|
| Platform Dimensions |
3' 5" |
|
| Dimensions | Overall Width |
3' 11" |
| Turning Radius |
8' 6" |
|
| Ground Clearance |
4" |
|
| Overall Length |
11' 10" |
|
| Overall Height Stowed |
6' 7" |
|
| Wheelbase |
5' 3" |
|
| Operational | Operating Weight |
9,480 lb |
| Maximum Speed |
3.4 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
