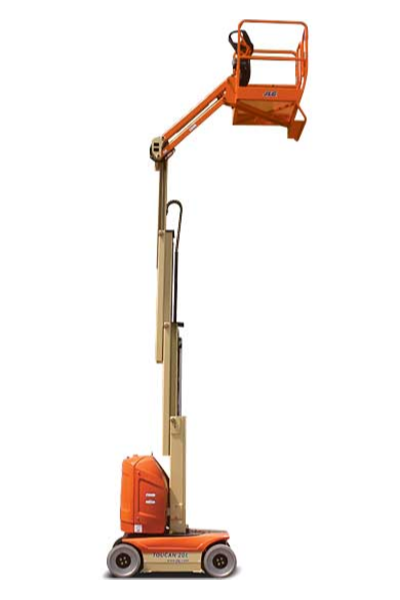

JLG T20E Specs
Vertical Mast Lift Specifications
| Engine | Power Option |
Electric |
| Platform | Max Platform Height |
20' 2" |
| Max Weight Capacity |
500 lb |
|
| Platform Length |
2' 9" |
|
| Platform Dimensions |
2' 11" |
|
| Dimensions | Overall Width |
3' 3" |
| Turning Radius |
5' 9" |
|
| Ground Clearance |
3" |
|
| Overall Length |
6' 11" |
|
| Overall Height Stowed |
6' 7" |
|
| Wheelbase |
3' 11" |
|
| Operational | Operating Weight |
5,360 lb |
| Maximum Speed |
3.4 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
