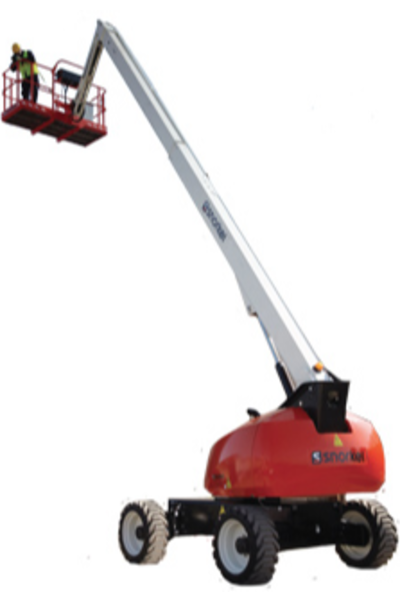

Snorkel TB47J Specs
Telescopic Boom Lift Specifications
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
47' 0" |
| Max Horizontal Reach |
39' 0" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Length |
3' 0" |
|
| Platform Rotation |
150 deg |
|
| Dimensions | Overall Width |
7' 11.5" |
| Turning Radius |
19' 9" |
|
| Ground Clearance |
10" |
|
| Overall Length |
26' 9" |
|
| Overall Height Stowed |
7' 9.5" |
|
| Wheelbase |
8' 0" |
|
| Operational | Operating Weight |
13,500 lb |
| Maximum Speed |
3 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
