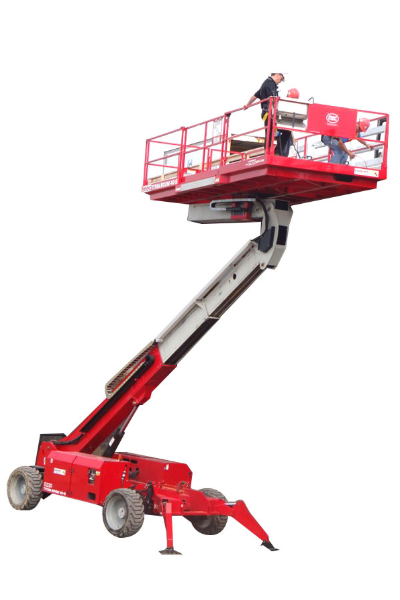

MEC Titan Boom 40 S Specs
Telescopic Boom Lift Specifications
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
40' 0" |
| Max Horizontal Reach |
55' 0" |
|
| Max Weight Capacity |
1,000 lb |
|
| Platform Length |
22' 0" |
|
| Platform Dimensions |
90 |
|
| Dimensions | Overall Width |
8' 0" |
| Turning Radius |
19' 0" |
|
| Ground Clearance |
18" |
|
| Overall Length |
22' 6" |
|
| Overall Height Stowed |
6' 7" |
|
| Wheelbase |
12' 8" |
|
| Operational | Operating Weight |
23,950 lb |
| Maximum Speed |
4 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
