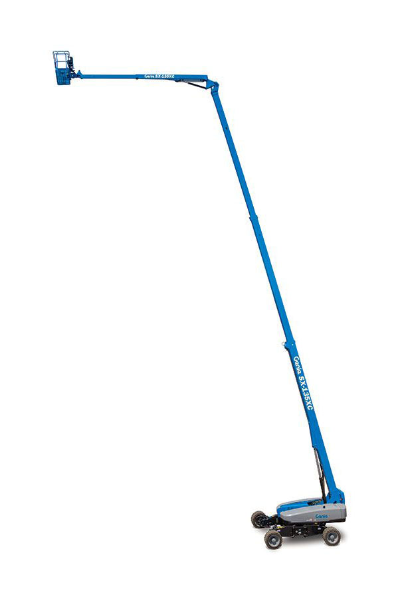

Genie SX-135 XC Specs
Telescopic Boom Lift Specifications
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
135' 0" |
| Max Horizontal Reach |
90' 0" |
|
| Max Weight Capacity |
660 lb unrestricted |
|
| Max Weight Capacity* |
1,000 lb restricted |
|
| Platform Rotation |
160 degree |
|
| Platform Dimensions |
8' 0" x 3' 0" |
|
| Dimensions | Overall Width |
8' 2" |
| Turning Radius |
32' 8" |
|
| Ground Clearance |
15" |
|
| Overall Length |
64' 10" |
|
| Overall Height Stowed |
10' 0" |
|
| Wheelbase |
13' 6" |
|
| Operational | Operating Weight |
47,500 lb |
| Maximum Speed |
2.7 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
