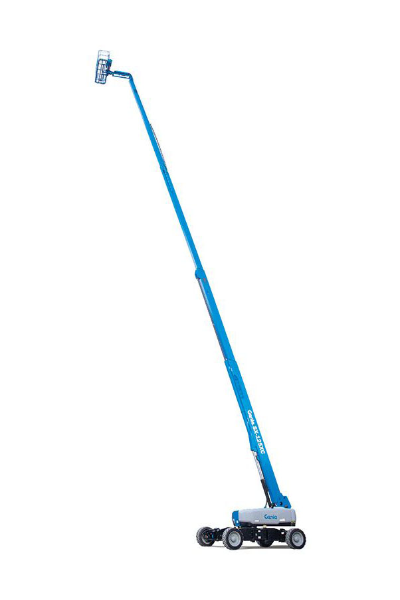

Genie SX-125 XC Specs
Telescopic Boom Lift Specifications
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
125 ft |
| Max Horizontal Reach |
80 ft |
|
| Max Weight Capacity |
660 lbs unrestricted |
|
| Max Weight Capacity* |
1,000 lbs restricted |
|
| Platform Dimensions |
8' x 3' or 6' x 2'6" |
|
| Platform Rotation |
160 degree |
|
| Dimensions | Overall Width |
98 in |
| Turning Radius |
32 ft 8 in |
|
| Wheelbase |
13 ft 6 in |
|
| Overall Height Stowed |
10 ft |
|
| Overall Length |
46 ft 9 in |
|
| Ground Clearance |
15 in |
|
| Operational | Operating Weight |
45,636 lbs |
| Maximum Speed |
3 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
