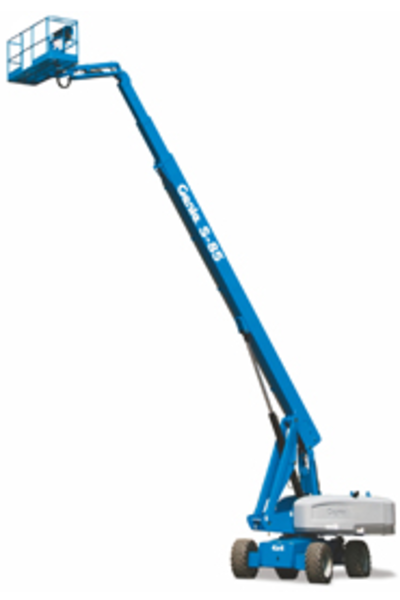

Genie S-85 Specs
Telescopic Boom Lift Specifications
| Engine | Power Option |
Dual Fuel or Diesel |
| Drive |
2WD or 4WD |
|
| Platform | Max Platform Height |
85 ft |
| Max Horizontal Reach |
76 ft 6 in |
|
| Max Weight Capacity |
500 lbs |
|
| Platform Rotation |
160 degree |
|
| Platform Dimensions |
8' x 3' or 6' x 2'6" |
|
| Dimensions | Overall Width |
98 in |
| Turning Radius |
21 ft 6 in |
|
| Wheelbase |
9 ft 4 in |
|
| Overall Height Stowed |
9 ft 2 in |
|
| Overall Length |
40 ft |
|
| Ground Clearance |
15.80 in |
|
| Operational | Operating Weight |
37,900 lbs |
| Maximum Speed |
3.30 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
