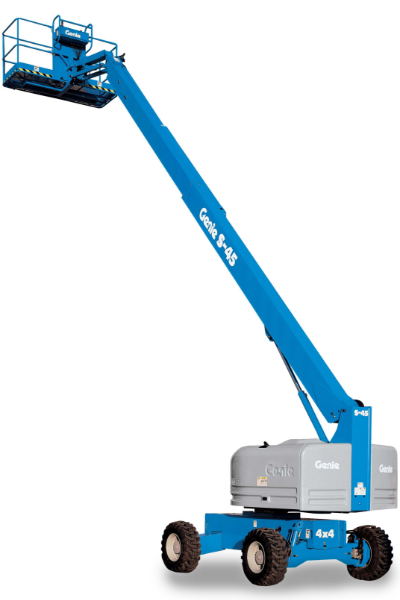

Genie S-45 Specs
Telescopic Boom Lift Specifications
| Engine | Power Option |
Dual Fuel Diesel |
| Platform | Max Platform Height |
45' 0" |
| Max Horizontal Reach |
36' 8" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Rotation |
160 degree |
|
| Platform Dimensions |
6' 0" x 2' 6" |
|
| Dimensions | Overall Width |
7' 4" |
| Turning Radius |
15' 8" |
|
| Wheelbase |
7' 3" |
|
| Ground Clearance |
12.5" |
|
| Overall Length |
27' 10" |
|
| Overall Height Stowed |
8' 2" |
|
| Operational | Operating Weight |
15,230 lb |
| Maximum Speed |
4.8 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
