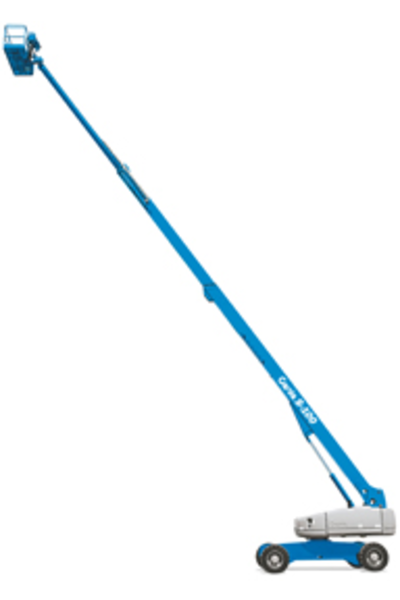

Genie S-120 Specs
Telescopic Boom Lift Specifications
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
120' 0" |
| Max Horizontal Reach |
75' 0" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Dimensions |
8' 0" x 3' 0" 6' 0" x 2' 6" |
|
| Platform Rotation |
160 degree |
|
| Dimensions | Overall Width |
8' 1" |
| Turning Radius |
22' 2" |
|
| Ground Clearance |
17" |
|
| Overall Length |
42' 8" |
|
| Overall Height Stowed |
10' 1" |
|
| Wheelbase |
12' 0" |
|
| Operational | Operating Weight |
44,340 lb |
| Maximum Speed |
3 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
