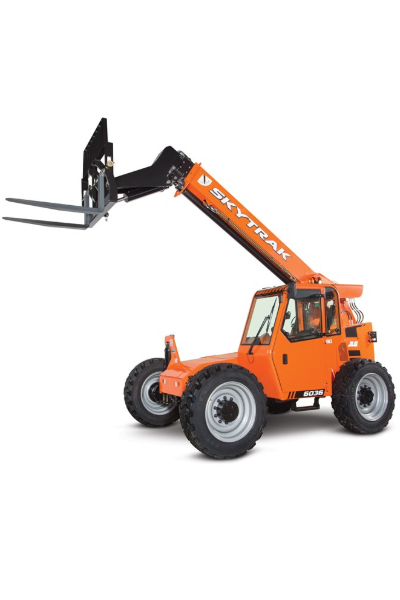

SkyTrak 6036 Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Operational | Max Lifting Capacity |
6,000 lbs |
| Max Lifting Height |
36' 1" |
|
| Operating Weight |
21,300 lbs |
|
| Maximum Forward Reach |
22' 4" |
|
| Lift Capacity at Maximum Reach |
1,800 lbs |
|
| Draw Bar Pull |
22,000 lbs |
|
| Maximum Speed |
19 mph |
|
| Dimensions | Overall Width |
8' 3" |
| Turning Radius |
13' 9" |
|
| Wheelbase |
9' 5" |
|
| Overall Height Stowed |
8' 4" |
|
| Overall Length |
18' 8" |
|
| Ground Clearance |
1' 3" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
