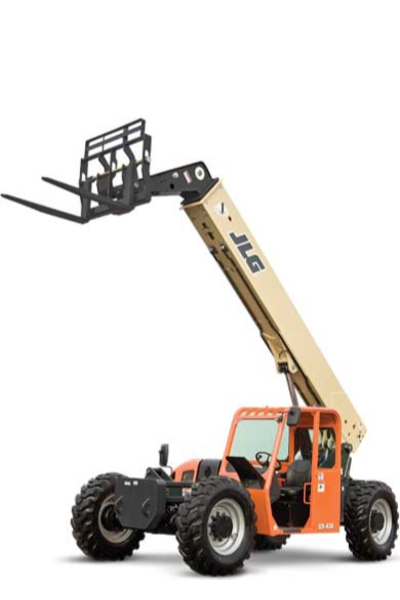

JLG G9 43A Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Operational | Max Lifting Capacity |
9,000 lb |
| Max Lifting Height |
43' 0" |
|
| Operating Weight |
26,780 lb |
|
| Lift Capacity at Maximum Height |
7,000 lb |
|
| Draw Bar Pull |
22,000 lb |
|
| Lift Capacity at Maximum Reach |
1,200 lb |
|
| Maximum Speed |
20 mph |
|
| Maximum Forward Reach |
30' 7" |
|
| Dimensions | Overall Width |
7' 11" |
| Turning Radius |
12' 0" |
|
| Wheelbase |
11' 0" |
|
| Ground Clearance |
17" |
|
| Overall Length |
19' 10" |
|
| Overall Height Stowed |
8' 0" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
