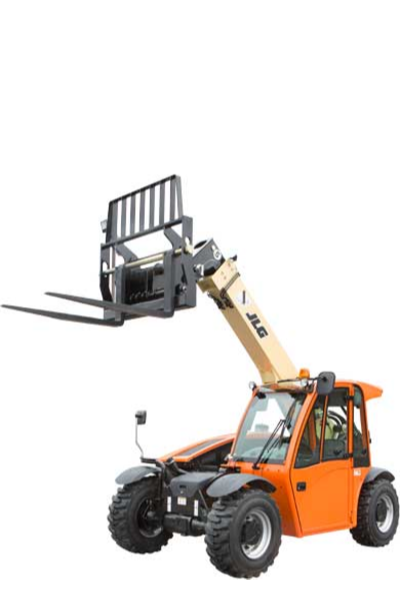

JLG G5 18A Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Operational | Max Lifting Capacity |
5,512 lb |
| Max Lifting Height |
18' 0" |
|
| Operating Weight |
11,001 lb |
|
| Lift Capacity at Maximum Height |
4,409 lb |
|
| Draw Bar Pull |
8,902 lb |
|
| Lift Capacity at Maximum Reach |
1,764 lb |
|
| Maximum Speed |
15 mph |
|
| Maximum Forward Reach |
11' 0" |
|
| Dimensions | Overall Width |
6' 0" |
| Turning Radius |
10' 6" |
|
| Wheelbase |
7' 6" |
|
| Ground Clearance |
12" |
|
| Overall Length |
12' 0" |
|
| Overall Height Stowed |
6' 4" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
