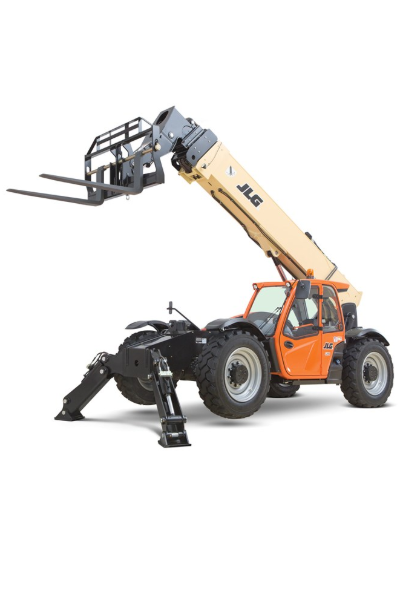

JLG 1255 Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Operational | Max Lifting Capacity |
12,000 lb |
| Max Lifting Height |
55' 0" |
|
| Operating Weight |
33,960 lb |
|
| Lift Capacity at Maximum Reach |
3,500 lb |
|
| Maximum Speed |
20 mph |
|
| Maximum Forward Reach |
42' 0" |
|
| Lift Capacity at Maximum Height |
5,000 lb |
|
| Draw Bar Pull |
25,400 lb |
|
| Dimensions | Overall Width |
8' 5" |
| Turning Radius |
14' 0" |
|
| Ground Clearance |
18" |
|
| Overall Length |
20' 1" |
|
| Overall Height Stowed |
8' 4" |
|
| Wheelbase |
11' 6" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
