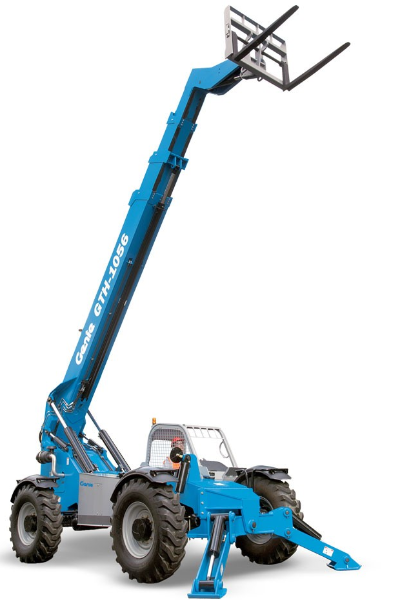

Genie GTH 1056 Specs
Telehandlers Specifications
| Engine | Power Option |
Diesel |
| Drive |
4WS |
|
| Operational | Max Lifting Capacity |
10,000 lbs |
| Max Lifting Height |
56' 10" |
|
| Operating Weight |
30,000 lbs |
|
| Lift Capacity at Maximum Height |
4,000 lbs |
|
| Maximum Forward Reach |
42' 0" |
|
| Maximum Speed |
17 mph |
|
| Lift Capacity at Maximum Reach |
3,000 lbs |
|
| Draw Bar Pull |
28,800 lbs |
|
| Dimensions | Overall Width |
8' 6" |
| Turning Radius |
13' 3" |
|
| Ground Clearance |
1' 6" |
|
| Overall Length Stowed |
22' 0" |
|
| Wheelbase |
10' 8" |
|
| Overall Height Stowed |
8' 6" |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
