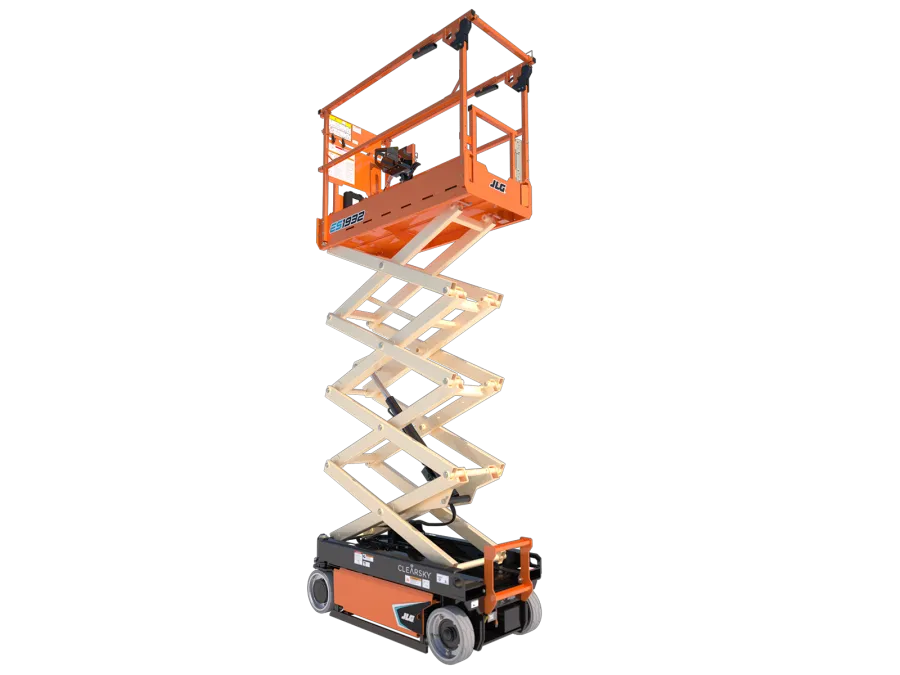

JLG ES1932 Specs ANSI updated
Slab Scissor Lift Specifications
Contact manufacturer to confirm your lift includes ANSI updates.
| Engine | Power Option |
Electric |
| Platform | Max Platform Height |
19 ft |
| Max Weight Capacity |
507 lbs |
|
| Platform Length |
62.70 in |
|
| Platform Dimensions |
25.40 in |
|
| Dimensions | Overall Width |
32 in |
| Turning Radius |
5 ft 6 in |
|
| Wheelbase |
4 ft 5 in |
|
| Overall Height Stowed |
6 ft 11 in |
|
| Overall Length |
5 ft 9 in |
|
| Ground Clearance |
3 in |
|
| Operational | Operating Weight |
3,450 lbs |
| Maximum Speed |
3.00 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
