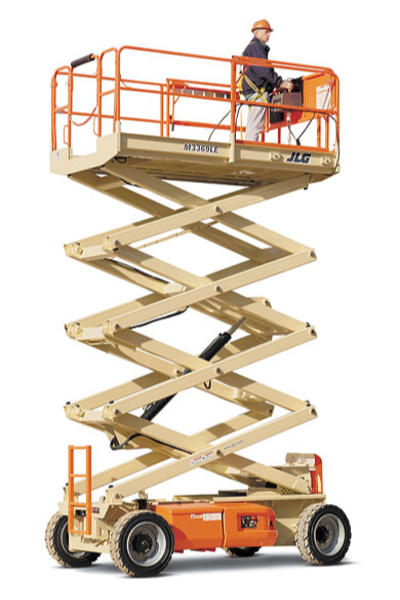

JLG M3369LE Specs
Slab Scissor Lift Specifications
| Engine | Power Option |
Bi-Energy |
| Platform | Max Platform Height |
33 ft |
| Max Weight Capacity |
1,000 lbs |
|
| Platform Length |
9 ft 7 in |
|
| Platform Dimensions |
5 ft 5 in |
|
| Dimensions | Overall Width |
69 in |
| Turning Radius |
15 ft 6 in |
|
| Wheelbase |
7 ft 7 in |
|
| Overall Height Stowed |
9 ft |
|
| Overall Length |
10 ft 2 in |
|
| Ground Clearance |
8 in |
|
| Operational | Operating Weight |
10,060 lbs |
| Maximum Speed |
3 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
