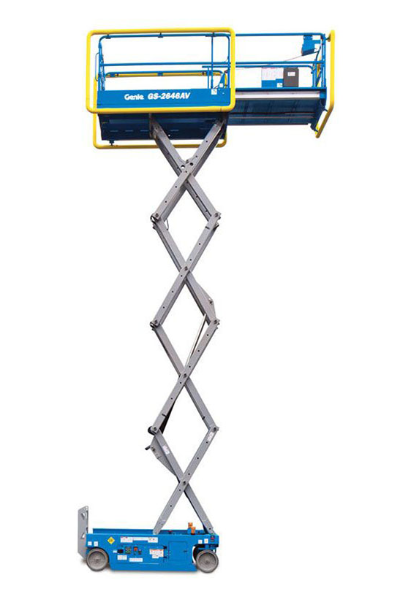

Genie GS2646 Specs
Slab Scissor Lift Specifications
| Engine | Power Option |
Electric |
| Platform | Max Platform Height |
26' 0" |
| Max Weight Capacity |
1,000 lb |
|
| Platform Dimensions |
7' 5" x 3' 9.3" |
|
| Dimensions | Overall Width |
3' 10" |
| Turning Radius |
7' 6" |
|
| Ground Clearance |
4" |
|
| Overall Length |
8' 0" |
|
| Overall Height Stowed |
7' 5" |
|
| Wheelbase |
6' 1" |
|
| Operational | Operating Weight |
4,312 lb |
| Maximum Speed |
2.2 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
