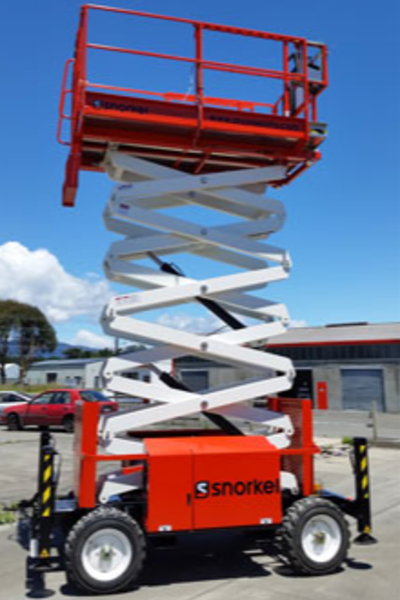

Snorkel S3970RT Specs

Rough Terrain Scissor Lift Specifications

Engine Power Option Diesel
Platform Max Platform Height 39 ft
Max Weight Capacity 771 lbs
Platform Length 8 ft 11 in
Platform Dimensions 5 ft 5 in
Dimensions Overall Width 70 in
Turning Radius 15 ft 7 in
Overall Height Stowed 9 ft 8 in
Ground Clearance 13 in
Overall Length 11 ft
Operational Operating Weight 8,355 lbs
Maximum Speed 2.80 mph

Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
