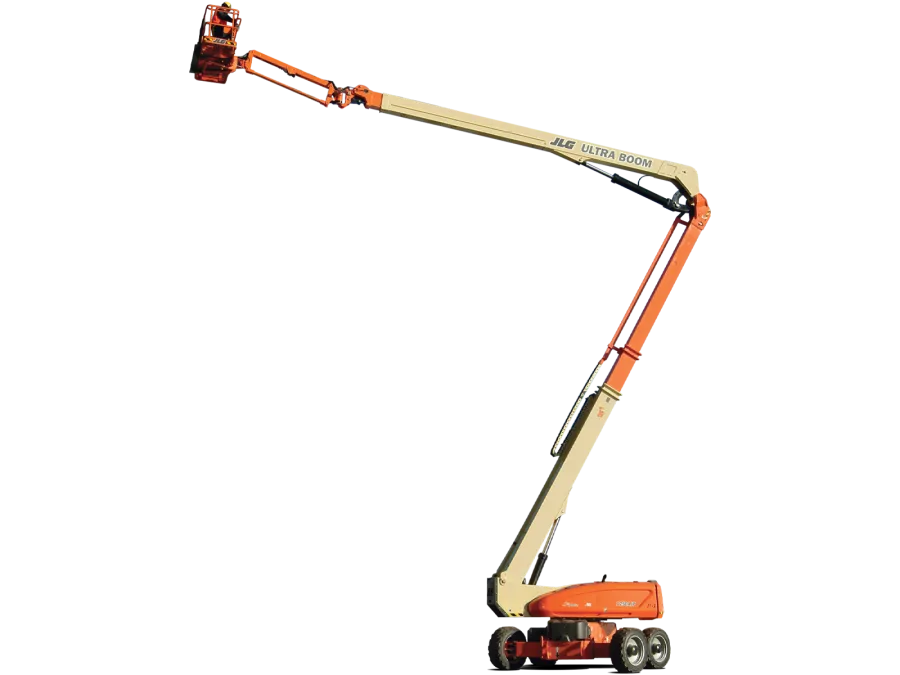

JLG 1250AJP Specs ANSI updated
Articulating Boom Lift Specifications
Contact manufacturer to confirm your lift includes ANSI updates.
For specs prior to ANSI updates click here
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
125 ft |
| Max Horizontal Reach |
63 ft 2 in |
|
| Max Weight Capacity |
500 lbs unrestricted |
|
| Max Weight Capacity* |
1,000 lbs restricted |
|
| Platform Dimensions |
8' x 3' |
|
| Dimensions | Overall Width |
98 in |
| Turning Radius |
22'6" / 19'4" |
|
| Overall Height Stowed |
10 ft |
|
| Ground Clearance |
1 ft |
|
| Overall Length |
47 ft 6 in |
|
| Operational | Operating Weight |
44,000 lbs |
| Maximum Speed |
3.30 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
