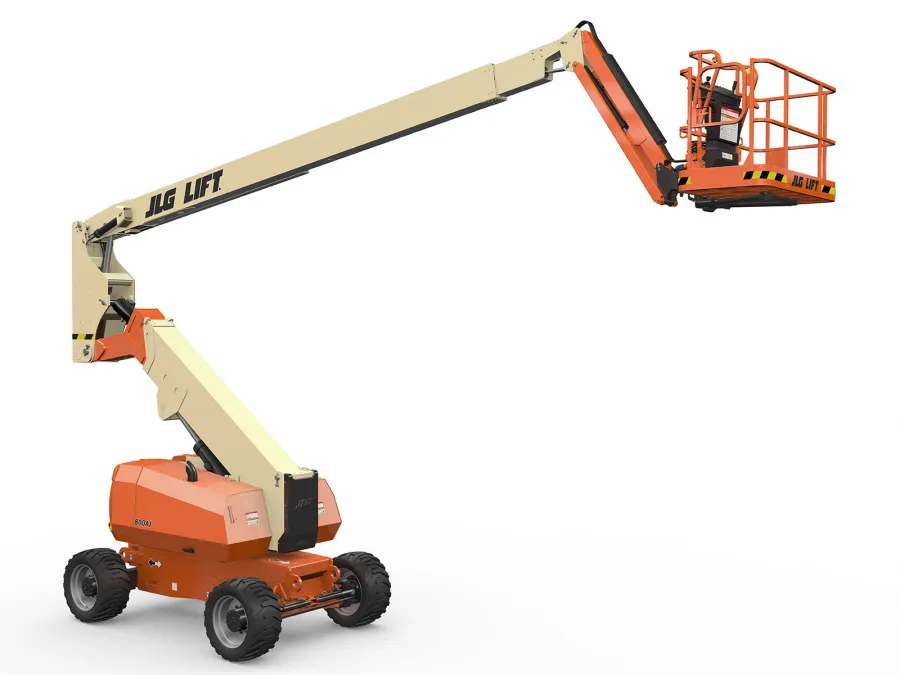

JLG 800AJ Specs ANSI updated

Articulating Boom Lift Specifications

Contact manufacturer to confirm your lift includes ANSI updates.

For specs prior to ANSI updates click here

Engine Power Option Dual Fuel or Diesel
Drive 2WD or 4WD
Platform Max Platform Height 80 ft
Max Horizontal Reach 51 ft 10 in
Max Weight Capacity 500 lbs
Platform Dimensions 8' x 3'
Dimensions Overall Width 98 in
Turning Radius 19'8" / 11'7"
Overall Height Stowed 9 ft 10 in
Ground Clearance 11 in
Overall Length 36 ft 6 in
Operational Operating Weight 34,738 lbs
Maximum Speed 3.00 mph

Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
