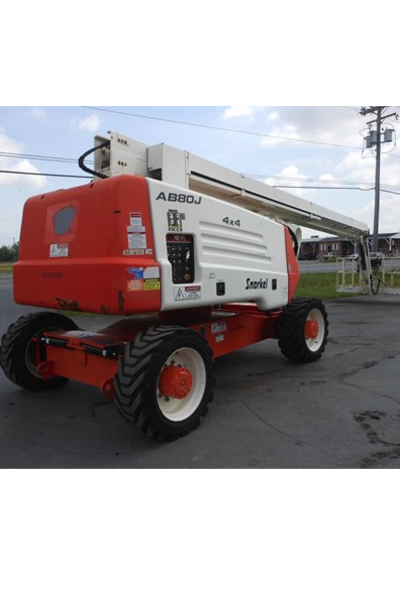

Snorkel AB80J Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
79' 11" |
| Max Horizontal Reach |
59' 5" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Rotation |
150 deg |
|
| Platform Dimensions |
8' 0" x 3' 0" |
|
| Dimensions | Overall Width |
8' 6" |
| Turning Radius |
15' 5" |
|
| Ground Clearance |
13" |
|
| Overall Height Stowed |
9' 10" |
|
| Overall Length |
32' 2" |
|
| Operational | Operating Weight |
36,800 lb |
| Maximum Speed |
3 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
