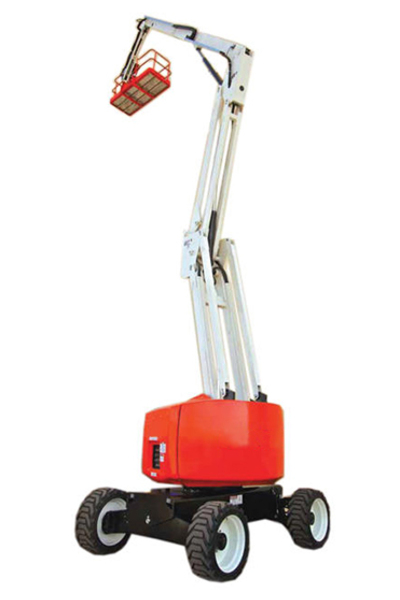

Snorkel A62JRT Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Diesel |
| Platform | Max Platform Height |
61 ft 8 in |
| Max Horizontal Reach |
36 ft 6 in |
|
| Max Weight Capacity |
500 lbs |
|
| Platform Dimensions |
8' x 3' |
|
| Platform Rotation |
180 degree |
|
| Dimensions | Overall Width |
96 in |
| Turning Radius |
15 ft 5 in |
|
| Overall Length |
28 ft 2.5 in |
|
| Overall Height Stowed |
8 ft 5 in |
|
| Ground Clearance |
14 in |
|
| Operational | Operating Weight |
23,500 lbs |
| Maximum Speed |
3.80 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
