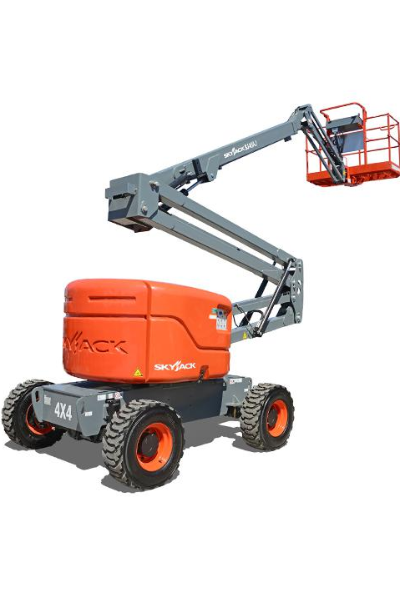

Skyjack SJ46AJ Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Dual Fuel |
| Platform | Max Platform Height |
46' 3" |
| Max Horizontal Reach |
24' 9" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Dimensions |
6' 0" x 2' 6" |
|
| Platform Rotation |
170 deg |
|
| Dimensions | Overall Width |
7' 6" |
| Turning Radius |
14' 10" |
|
| Ground Clearance |
16" |
|
| Overall Length |
21' 5" |
|
| Overall Height Stowed |
6' 10" |
|
| Wheelbase |
6' 8" |
|
| Operational | Operating Weight |
13,300 lb |
| Maximum Speed |
4.8 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
