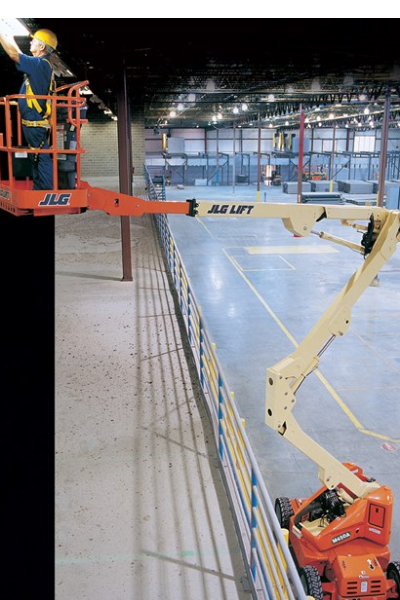

JLG M450AJ Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Bi-Energy |
| Platform | Max Platform Height |
45 ft |
| Max Horizontal Reach |
23 ft 9 in |
|
| Max Weight Capacity |
500 lbs |
|
| Platform Dimensions |
5' x 2' |
|
| Dimensions | Overall Width |
69 in |
| Turning Radius |
10 ft 4 in |
|
| Ground Clearance |
9 in |
|
| Overall Length |
21 ft 2 in |
|
| Overall Height Stowed |
6 ft 7 in |
|
| Operational | Operating Weight |
14,700 lbs |
| Maximum Speed |
3.20 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
