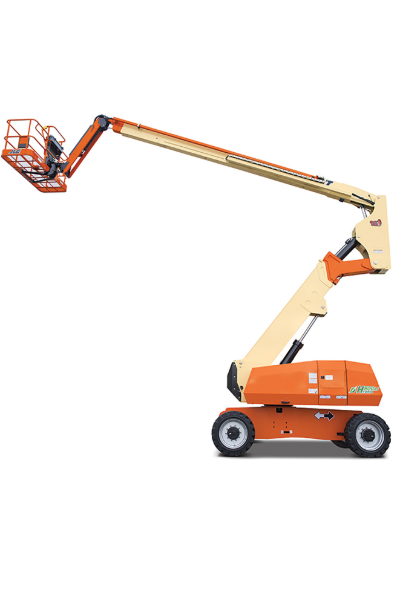

JLG H800AJ Hybrid Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Bi-Energy |
| Platform | Max Platform Height |
80' 0" |
| Max Horizontal Reach |
51' 10" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Dimensions |
8' 0" x 3' 0" |
|
| Dimensions | Overall Width |
8' 2" |
| Overall Height Stowed |
9' 10" |
|
| Overall Length |
36' 6" |
|
| Ground Clearance |
11" |
|
| Operational | Operating Weight |
35,520 lb |
| Maximum Speed |
3.5 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
