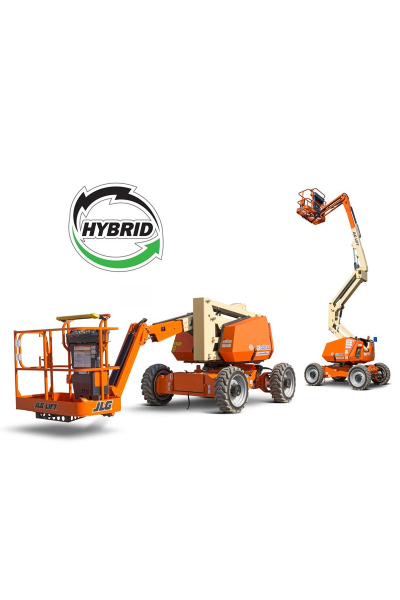

JLG H340AJ Hybrid Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Bi-Energy |
| Platform | Max Platform Height |
33 ft 9 in |
| Max Horizontal Reach |
19 ft 11 in |
|
| Max Weight Capacity |
500 lbs |
|
| Platform Dimensions |
5' x 2' |
|
| Dimensions | Overall Width |
76 in |
| Turning Radius |
13 ft |
|
| Overall Length |
18 ft 2 in |
|
| Overall Height Stowed |
6 ft 7 in |
|
| Ground Clearance |
10 in |
|
| Operational | Operating Weight |
9,860 lbs |
| Maximum Speed |
3.70 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
