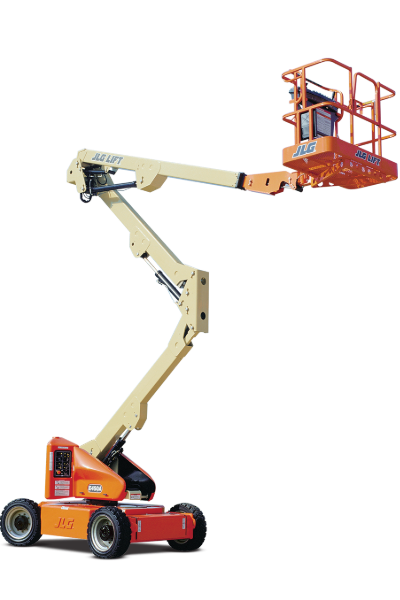

JLG E450A Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Electric |
| Platform | Max Platform Height |
45' 0" |
| Max Horizontal Reach |
23' 1" |
|
| Max Weight Capacity |
500 lb |
|
| Platform Dimensions |
5' 0" x 2' 0" |
|
| Dimensions | Overall Width |
5' 9" |
| Turning Radius |
10' 4" |
|
| Overall Length |
19' 1" |
|
| Ground Clearance |
9" |
|
| Overall Height Stowed |
6' 6" |
|
| Operational | Operating Weight |
12,600 lb |
| Maximum Speed |
3.2 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
