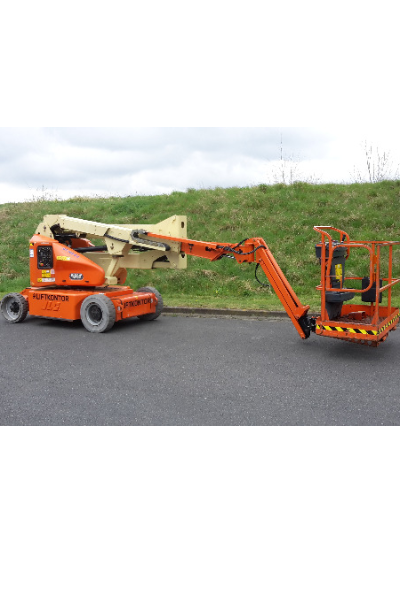

JLG E400AN Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Electric |
| Platform | Max Platform Height |
40 ft |
| Max Horizontal Reach |
21 ft 2 in |
|
| Max Weight Capacity |
500 lbs |
|
| Platform Dimensions |
4'0" x 2'6" |
|
| Dimensions | Overall Width |
59 in |
| Turning Radius |
10 ft 4 in |
|
| Overall Height Stowed |
6 ft 6 in |
|
| Ground Clearance |
5 in |
|
| Overall Length |
18 ft 1 in |
|
| Operational | Operating Weight |
13,100 lbs |
| Maximum Speed |
3 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
