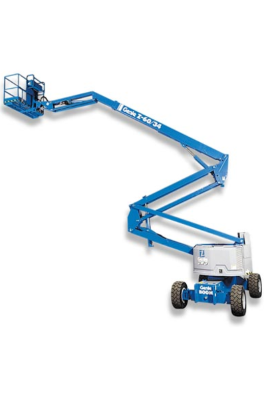

Genie Z-60/34 Specs

Articulating Boom Lift

Genie
Engine Power Option Dual Fuel
Platform Max Platform Height 60 ft 4 in
Max Horizontal Reach 36 ft 3 in
Max Weight Capacity 500 lbs
Platform Length 3 ft
2 ft 6 in
Platform Rotation 180 degree
Platform Width 6 ft
8 ft
Dimensions Overall Width 97 in
Wheelbase 8 ft 3 in
Overall Height Stowed 8 ft 10 in
Overall Length 26 ft 9 in
Ground Clearance 1 ft 4 in
Working Height 60 ft
Turning Radius 19 ft 11 in
Operational Operating Weight 22,520 lbs
Maximum Speed 3 mph
