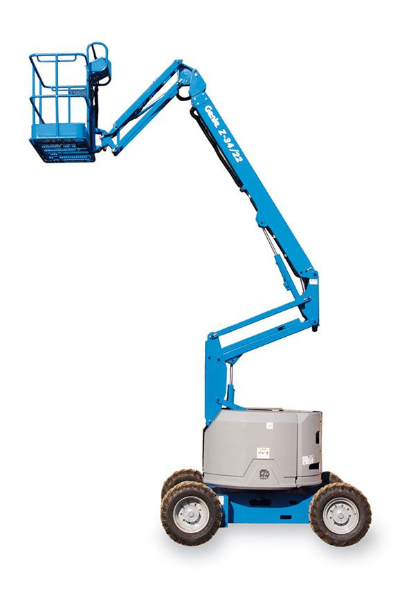

Genie Z-34/22 Specs
Articulating Boom Lift Specifications
| Engine | Power Option |
Bi-Energy or DC Electric |
| Platform | Max Platform Height |
34 ft 6 in |
| Max Horizontal Reach |
22 ft 3 in |
|
| Max Weight Capacity |
500 lbs |
|
| Platform Dimensions |
4',8" x 2',6" |
|
| Platform Rotation |
180 degree |
|
| Dimensions | Overall Width |
68 in |
| Turning Radius |
13 ft 1 in |
|
| Wheelbase |
6 ft 2 in |
|
| Overall Height Stowed |
6 ft 7 in |
|
| Overall Length |
18 ft 6 in |
|
| Ground Clearance |
6 in |
|
| Operational | Operating Weight |
12,000 lbs |
| Maximum Speed |
4 mph |
|
Lift specifications are from manufacturers websites.
Contact the manufacturer with serial number to confirm specification accuracy.
